HMIWeconIn Stock

WECON PI8070ig(N) 7" High-Performance HMI

Model: PI8070ig(N)

LKR 0.00

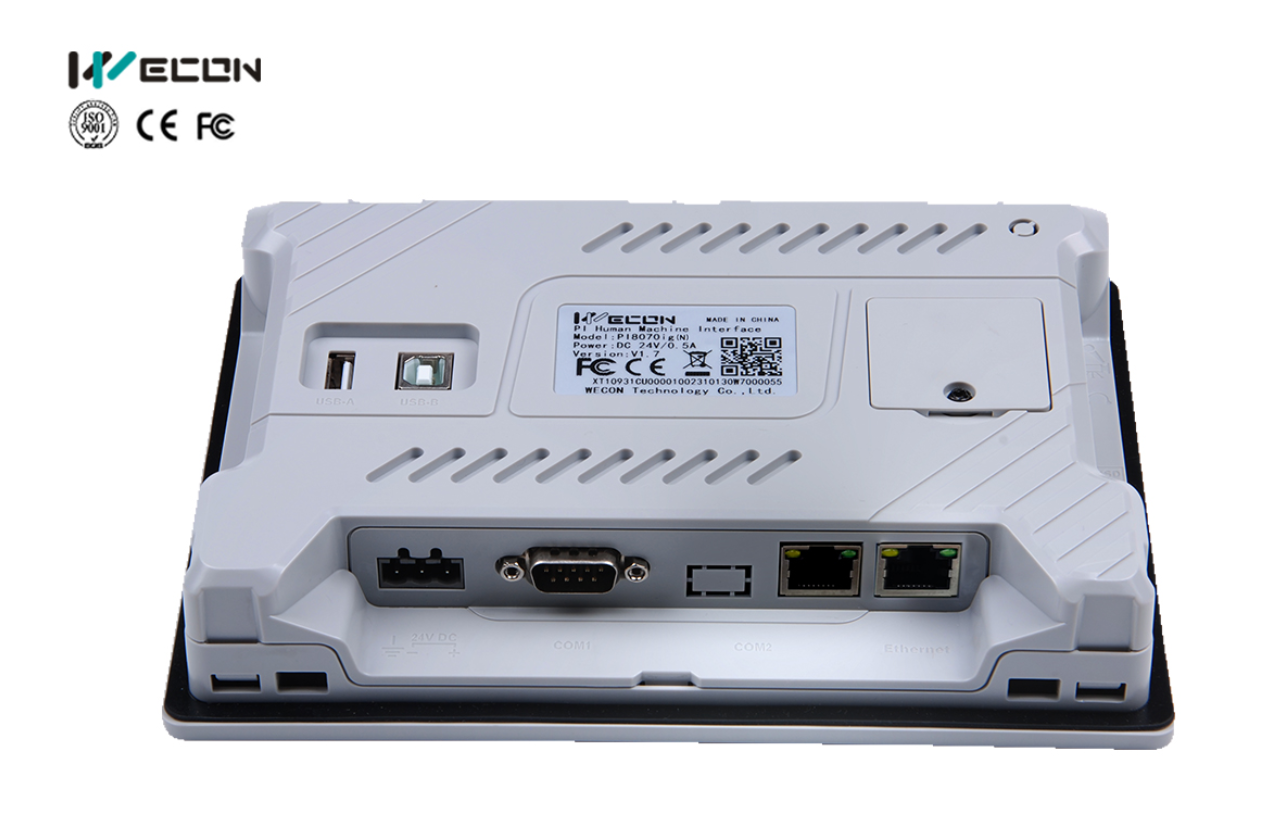

The WECON PI8070ig(N) is an advanced 7-inch Human Machine Interface powered by a Quad-core high-performance CPU. Designed for seamless industrial connectivity, it features dual Ethernet ports and supports IP camera integration. This HMI offers versatile project management with multiple download methods, including USB, LAN, and remote options, backed by 4GB of Flash and 512MB of RAM for complex industrial applications. Key Features: CPU & Memory: Quad-core high-performance processor with 4GB Flash and 512MB RAM. Display: 7" screen with 800 X 480 resolution. Connectivity: Equipped with 2 Ethernet ports and support for IP Cameras. Serial Interfaces: COM1 supporting RS232, RS422/RS485, and a dedicated RS485 port. Flexible Programming: Supports downloading via USB cable, USB flash drive, LAN, and remote download. Industrial Design: Built for reliability in automated environments with standard certifications.

SKUPI8070ig(N)

Unitpcs

Quantity

More from This Brand

Swipe

HMI

Wecon

LKR 0.00

WECON PI8121ig(N) 12" High-Performance HMI

The WECON PI8121ig(N) is a high-performance 12-inch Human Machine Interface designed for advanced industrial visualization and complex automation control. Powered by a Quad-core high-performance CPU with 512MB RAM and 4GB Flash memory, it provides the processing power required for data-heavy applications. It features a high-resolution 1024 X 768 display and versatile connectivity options, including dual Ethernet ports and multiple serial interfaces, ensuring seamless integration into modern IIoT environments. Key Features: Display: 12-inch screen with a crisp 1024 X 768 resolution. CPU & Memory: Quad-core high-performance CPU with 4GB Flash and 512MB RAM. Connectivity: Equipped with dual Ethernet ports for flexible networking. Serial Interfaces: COM1 supports RS232 and RS422/RS485; additional dedicated RS485 port. Flexible Deployment: Supports project downloads via USB cable, USB flash drive, LAN, and remote download. Reliability: Industrial-grade hardware designed for stability in demanding environments.

HMI

Wecon

LKR 0.00

WECON PI8101ig(N) 10.1" High-Performance HMI

The WECON PI8101ig(N) is a high-end 10.1-inch Human Machine Interface powered by a Quad-core high-performance CPU. Designed for advanced industrial networking, it features dual Ethernet ports and supports sophisticated project management through multiple download methods including LAN and remote access. With a crisp 1024 X 600 resolution and substantial 4GB Flash memory, it provides a powerful platform for data-intensive automation and visualization. Key Features: CPU & Memory: Quad-core high-performance processor with 4GB Flash and 512MB RAM memory. Display: 10.1" widescreen display with 1024 X 600 resolution. Networking: Dual Ethernet ports for flexible network architecture. Interfaces: COM1 supports RS232 and RS422/RS485; additional dedicated RS485 port available. Project Deployment: Supports USB cable, USB flash drive, LAN, and remote download methods. Industrial Grade: CE and FCC certified with a rugged enclosure design.

HMI

Wecon

LKR 0.00

WECON PI8102ig Series 10.1" High-Performance HMI

The WECON PI8102ig is a professional 10.1-inch Human Machine Interface engineered for high-visibility industrial applications and robust IIoT connectivity. It features a large 1024 X 600 resolution TFT display with 350 cd/m2 brightness, making it ideal for detailed process monitoring. With a high-performance CPU, 4GB of flash storage, and advanced V-Net functions, it supports modern factory requirements like MQTT, Lua scripting, and secure remote access. Key Features: Display: 10.1" TFT screen with 1024 X 600 resolution and 350 cd/m2 brightness. Touch Panel: High-precision four-wire resistive touch. Memory: 512 MB RAM and 4 GB Flash storage with SD card slot support. Connectivity: Integrated Ethernet (x1), USB 2.0 Host + Client (non-simultaneous use), and versatile serial ports (RS232/RS422/RS485). IIoT Integration: Supports Cloud SCADA, MQTT, Lua Scripting, and WVPN for secure remote control. Networking Options: Available in standard Ethernet, 4G (G model), or WIFI (W model) configurations. Durability: IP65- rated front panel with a working temperature range of 10°C to 55°C Power Supply: 24V DC (Input range 12 - 28V) with low power consumption under 10W.

HMI

Wecon

LKR 0.00

WECON PI8070ig Series 7" High-Performance HMI

The WECON PI8070ig is a high-performance 7-inch Human Machine Interface designed for versatile industrial automation and IIoT connectivity. Featuring a bright TFT display and a high-performance CPU, it supports advanced V-Net functions such as MQTT, Lua scripting, and remote monitoring via Cloud or mobile APP. Its robust design includes an IP65-rated front panel and multiple communication ports, making it an ideal central hub for machine control and data management. Display: 7" TFT screen with 800 X 480 resolution and 250 cd/m2 brightness Touch Panel: High-precision four-wire resistive touch Memory: 512MB RAM and 4GB Flash storage with SD card slot support Communication: Integrated Ethernet, USB 2.0 Host/Client, and multiple serial ports (RS232/RS422/RS485) IIoT Functions: Supports MQTT, Lua script, Cloud monitoring, and Email alarms Network Options: Available in standard Ethernet, 4G, or Wi-Fi versions Durability: IP65-rated front panel with a working temperature range of 10°C to 55°C Power Supply: 24V DC (Input range 12 - 28V ) with power consumption < 10W

HMI

Wecon

LKR 0.00

WECON PI8043ig Series 4.3" High-Performance HMI

The WECON PI8043ig is a compact and versatile 4.3-inch Human Machine Interface designed for efficient machine control and IIoT connectivity. Despite its small footprint, it features a high-performance CPU, 4GB of flash storage, and advanced V-Net functions like MQTT, Lua Scripting, and remote monitoring via Cloud or APP. It is built for industrial reliability with an IP65-rated front panel and wide operating temperature range, making it a powerful choice for modern control panels. Key Features: Display: 4.3" screen with 480 X 272 resolution and 300 cd/m2 brightness. Touch Panel: High-precision four-wire resistive touch. Memory: 512MB RAM and 4GB Flash storage. Connectivity: Integrated Ethernet port, USB 2.0 Host or USB Type-C (cannot be used simultaneously). Serial Ports: Support for RS232, RS422, and RS485. IIoT Functions: Supports MQTT, Lua Script, Remote Update, and Email Alarms. Network Options: Available in standard Ethernet, 4G, or Wi-Fi versions. Environment: Durable plastic/ABS shell with a working temperature range of - 10°C to 55°C

HMI

Wecon

LKR 0.00

WECON PI8150ig Series 15" High-Performance HMI

The WECON PI8150ig is a premium 15-inch Human Machine Interface designed for high-end industrial visualization and IIoT connectivity. Featuring a crisp 1920 X 1080 resolution and a durable aluminum-metal shell, this HMI supports advanced V-Net functions, including remote monitoring, cloud data update, and MQTT protocol. It is equipped with a high-performance CPU and extensive communication options like Ethernet, CANopen, and optional 4G or Wi-Fi for seamless factory integration. Key Features: Display: 15" TFT Screen with 1920 X 1080 resolution and 250 cd/m2 brightness Touch Panel: High-precision four-wire resistive touch Memory: 512MB RAM and 4GB Flash storage; supports TF cards Connectivity: Built-in Ethernet, USB Host/Client, and multiple Serial ports (RS232/RS422/RS485) IIoT Ready: Supports MQTT, Lua Script, Remote Control, and Email Alarms Networking Options: Available with standard Ethernet, 4G (Global/Local), or Wi-Fi depending on model Multimedia: Supports IP Camera integration, Audio Output, and Video Player Durability: IP65 rated front panel with an aluminum + metal shell Operating Temp: 0°C to 50°C Power: 24V DC ( Input range 18 - 28V )

PLC

Wecon

LKR 0.00

WECON LX6V-0808MT High-Performance EtherCAT PLC

The WECON LX6V-0808MT is a high-performance programmable logic controller optimized for large-scale motion control systems. Featuring a Gigabit Ethernet interface and built-in EtherCAT support, it can manage up to 128 servo axes with exceptional precision. With an ultra-fast execution time of 0.01 - 0.02 µs and a 5M program capacity, it is designed to handle the most demanding industrial automation tasks, including high-speed pulse output and complex function blocks (FB/FC). Key Features: I/O Configuration: 8 Digital Input / 8 Digital Output Output Type: Transistor Motion Control: Built-in EtherCAT supporting up to 128 servo axes Execution Speed: 0.01 - 0.02 µs for basic instructions Program Capacity: 5M Programming: Instruction Table, Ladder Diagram, FB, and FC Connectivity: Gigabit Ethernet, Dual RS485 ports, and USB Type-C for programming/monitoring High-Speed I/O: 4-channel pulse output (200kHz) and 8-channel high-speed single input (150kHz) Advanced Interrupts: 100 channels for timer 0.1ms and high-speed counter interrupts Storage: Integrated TF Card support Environmental: Operating temperature 0°C to 55°C industrial-grade immunity (IEC61000-4-4)

PLC

Wecon

LKR 0.00

WECON LX6S-0808MT High-Performance EtherCAT PLC

The WECON LX6S-0808MT is a next-generation high-performance controller designed for sophisticated motion control applications. It features built-in EtherCAT support for controlling up to 16 servo axes and offers ultra-fast execution speeds down to 0.01 µs .With a massive 5M program capacity and support for multiple programming languages including ST and SFC, it provides the flexibility needed for modern, complex industrial systems. Key Features: I/O Configuration: 8 Digital Input / 8 Digital Output Output Type: Transistor Motion Control: Built-in EtherCAT supporting 8 or 16 servo axes Programming: LD (Ladder), ST (Structured Text), and SFC (Sequential Function Chart) Execution Speed: 0.01 to 0.02 µs for basic instructions Program Capacity: 5M High-Speed Pulse Output: 4 channels / 200kHz Communication: 100M Ethernet, Dual RS485 (COM1/COM2), and USB Type-C for programming/monitoring Storage: TF Card support for data logging and expanded storage Operating Temperature: 0°C to 55°C Power Supply: DC
