Product Catalog
VFD
45kW-160kW VC INVERTER
1. Support EtherCAT, Profinet protocol 2. Keyboard Standardly equipped with a dual-line display keyboard. Optional LCD keyboard is also available and firmware version download is supported. 3. Breaking unit 45-110kW the braking unit is optional. 4. Expansion Standardly equipped with dual expansion interfaces, supporting multiple combinations such as dual PG/communication/I/O + STO. 5. IO terminal IO terminal addition: 6DI,2AI, 2AO, 1DO, 2 Relay.

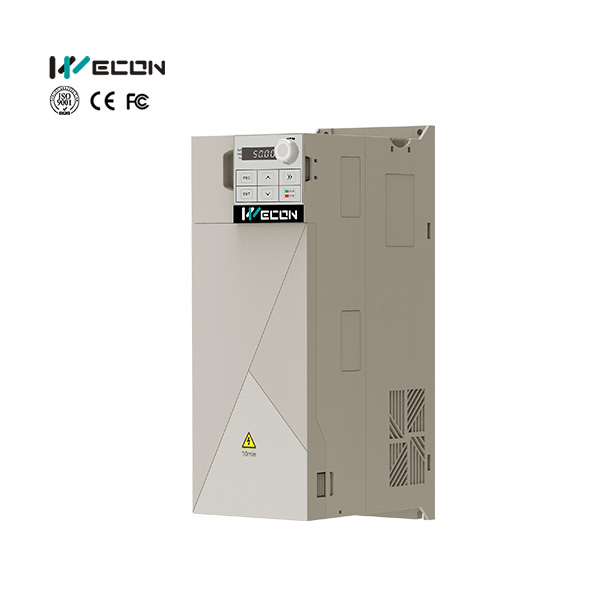

5.5kW-37kW VC INVERTER
1. Support EtherCAT, Profinet protocol; 2. Wide voltage input; 3. Compatible with synchronous /asynchronous motor; 4. Narrow-body and compact structure; 5. Rich application, macro parameters.

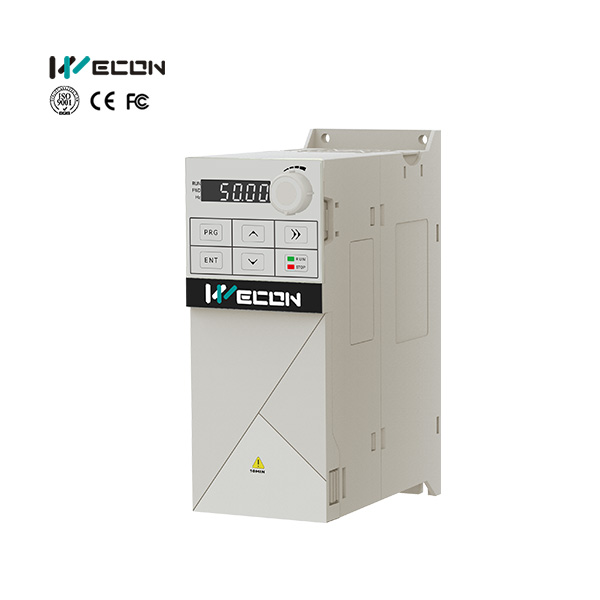

0.75kW-4kW VC INVERTER
1. Support EtherCAT, Profinet protocol; 2. Wide voltage input; 3. Compatible with synchronous /asynchronous motor; 4. Narrow-body and compact structure; 5. Rich application, macro parameters. Available for 220V-240V / Single phase, 380V-480V / Three phase
315KW-400KW INVERTER
1. SVC Control Mode: Maximum Output Frequency 320Hz 2. VF Control Mode: Maximum Output Frequency 1000Hz 3. Excellent Braking Function 4. Superior Control Performance,Optimized PID function 5. Random Carrier Function 6. Short-circuit protection in power-to-GND 7. Support speed mode and torque mode,low speed with high torque output Available for 220V/Single phase, 380V/415V/440V Three phase, 220V/Three phase

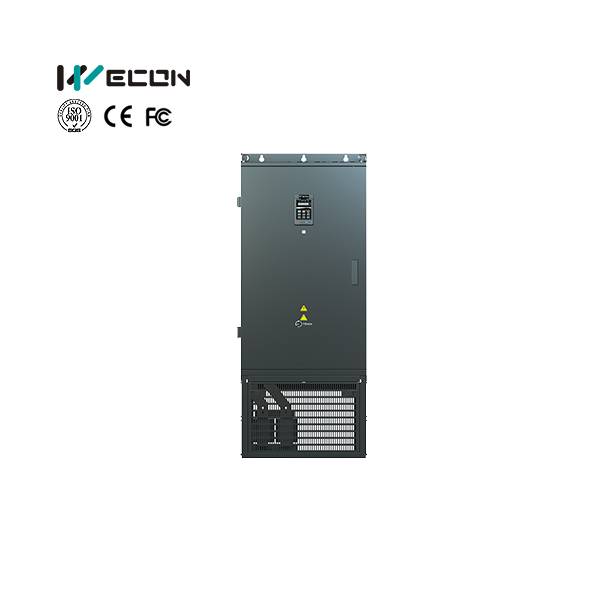

200KW-280KW INVERTER
1.SVC Control Mode: Maximum output Frequency 320Hz 2.VF Control Mode: Maximum output Frequency 1000Hz 3.Excellent Braking Function, 0.75-22kW built-in brake unit 4.Superior Control Performance,Optimized PlD function 5.Short-circuit protection in power-to-GND Available for 220V/Single phase, 380V/415V/440V Three phase, 220V/Three phase
132KW-185KW INVERTER
1.SVC Control Mode: Maximum output Frequency 320Hz 2.VF Control Mode: Maximum output Frequency 1000Hz 3.Excellent Braking Function, 0.75-22kW built-in brake unit 4.Superior Control Performance,Optimized PlD function 5.Short-circuit protection in power-to-GND Available for 220V/Single phase, 380V/415V/440V Three phase, 220V/Three phase

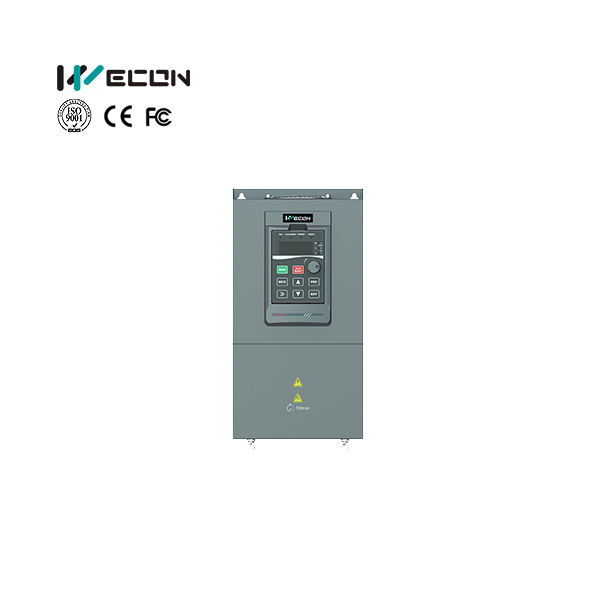

75KW-110KW INVERTER
1. SVC Control Mode: Maximum Output Frequency 320Hz 2. VF Control Mode: Maximum Output Frequency 1000Hz 3. Excellent Braking Function 4. Superior Control Performance,Optimized PID function 5. Random Carrier Function 6. Short-circuit protection in power-to-GND 7. Support speed mode and torque mode,low speed with high torque output Available for 220V/Single phase, 380V/415V/440V Three phase, 220V/Three phase
45KW-55KW INVERTER
1.SVC Control Mode: Maximum output Frequency 320Hz 2.VF Control Mode: Maximum output Frequency 1000Hz 3.Excellent Braking Function, 0.75-22kW built-in brake unit 4.Superior Control Performance,Optimized PlD function 5.Short-circuit protection in power-to-GND Available for 220V/Single phase, 380V/415V/440V Three phase, 220V/Three phase
30KW-37KW INVERTER
1. SVC Control Mode: Maximum Output Frequency 320Hz 2. VF Control Mode: Maximum Output Frequency 1000Hz 3. Excellent Braking Function 4. Superior Control Performance,Optimized PID function 5. Random Carrier Function 6. Short-circuit protection in power-to-GND 7. Support speed mode and torque mode,low speed with high torque output Available for 220V/Single phase, 380V/415V/440V Three phase, 220V/Three phase
18.5KW-22KW INVERTER
1.SVC Control Mode: Maximum output Frequency 320Hz 2.VF Control Mode: Maximum output Frequency 1000Hz 3.Excellent Braking Function, 0.75-22kW built-in brake unit 4.Superior Control Performance,Optimized PlD function 5.Short-circuit protection in power-to-GND Available for 220V/Single phase, 380V/415V/440V Three phase, 220V/Three phas
11KW-15KW INVERTER
1. SVC Control Mode: Maximum Output Frequency 320Hz 2. VF Control Mode: Maximum Output Frequency 1000Hz 3. Excellent Braking Function 4. Superior Control Performance,Optimized PID function 5. Random Carrier Function 6. Short-circuit protection in power-to-GND 7. Support speed mode and torque mode,low speed with high torque output Available for 220V/Single phase, 380V/415V/440V Three phase, 220V/Three phase

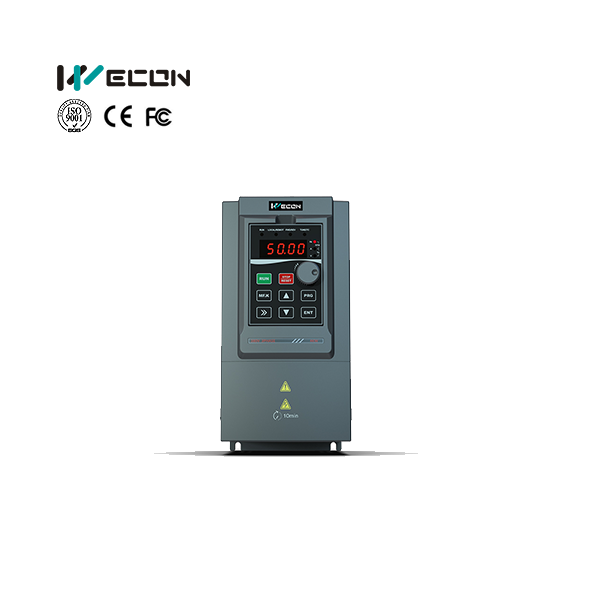

5KW-7.5KW INVERTER
1.SVC Control Mode: Maximum output Frequency 320Hz 2.VF Control Mode: Maximum output Frequency 1000Hz 3.Excellent Braking Function, 0.75-22kW built-in brake unit 4.Superior Control Performance,Optimized PlD function 5.Short-circuit protection in power-to-GND Available for 220V/Single phase, 380V/415V/440V Three phase, 220V/Three phase

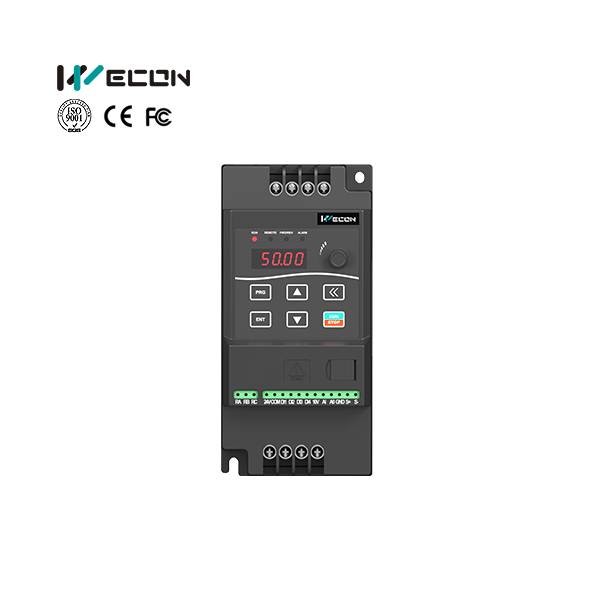

4KW INVERTER
Main Features: SVC Control Mode: Maximum output Frequency 320Hz VF Control Mode: Maximum output Frequency 1000Hz Excellent Braking Function, 0.75-22kW built-in brake unit Superior Control Performance,Optimized PlD function Short-circuit protection in power-to-GND Available for 220V/Single phase, 380V/415V/440V Three phase, 220V/Three phase
0.75KW-2.2KW INVERTER
SVC Control Mode: Maximum output Frequency 320Hz VF Control Mode: Maximum output Frequency 1000Hz Excellent Braking Function, 0.75-22kW built-in brake unit Superior Control Performance,Optimized PlD function Short-circuit protection in power-to-GND
5.5KW-7.5KW INVERTER
Small size, saving installation space; Compatible with din rail, easy and quick to install; Multiple protection mechanisms, safe and secure; 0-400Hz output frequency range; 150% overload for 60s.
4KW INVERTER
Small size, saving installation space; Compatible with din rail, easy and quick to install; Multiple protection mechanisms, safe and secure; 0-400Hz output frequency range; 150% overload for 60s.

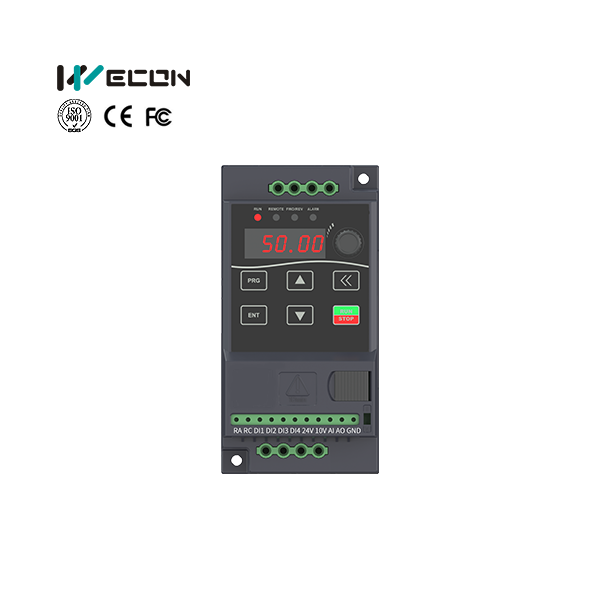

2.2KW INVERTER
Small size, saving installation space; Compatible with din rail, easy and quick to install; Multiple protection mechanisms, safe and secure; 0-400Hz output frequency range; 150% overload for 60s.
0.75KW-1.5KW INVERTER
Small size, saving installation space; Compatible with din rail, easy and quick to install; Multiple protection mechanisms, safe and secure; 0-400Hz output frequency range; 150% overload for 60s.
Relay

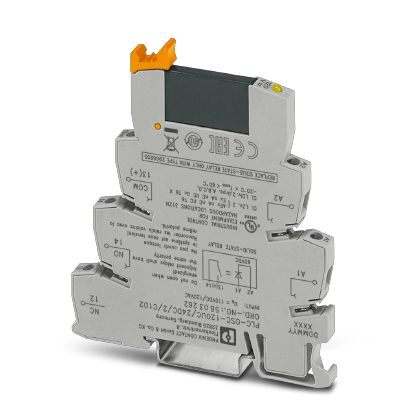

Electromechanical Relay 24VDC 120VAC (80x6.2x94)mm Plug-In PLC Relay
Electromechanical Relay 24VDC 120VAC (80x6.2x94)mm Plug-In PLC Relay

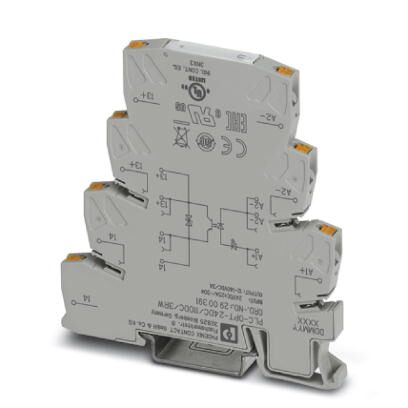

PLC-INTERFACE for railway applications - consisting of basic terminal block with push-in connection and integrated miniature solid-state relay
PLC-INTERFACE for railway applications - consisting of basic terminal block with push-in connection and integrated miniature solid-state relay - range: 0.7 x UN to 1.25 x UN - temperature range: -25°C to +70°C - 1 N/O contact - input: 24 V DC - output: 12 - 140 V DC/3 A

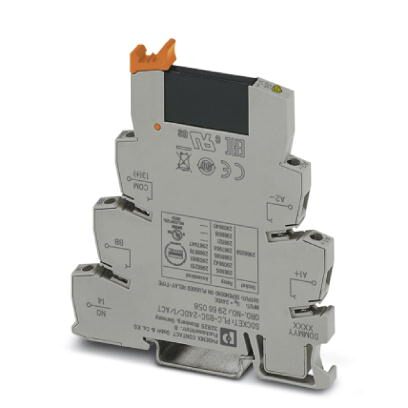

miniature solid-state relay
PLC-INTERFACE for output functions - consisting of PLC-BSC.../ACT basic terminal block with screw connection and plug-in miniature solid-state relay - for mounting on DIN rail NS 35/7,5 - 1 N/O contact - input: 24 V DC - output: 24 ... 253 V AC/0.75 A

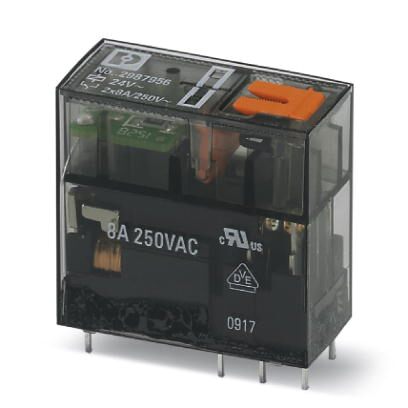

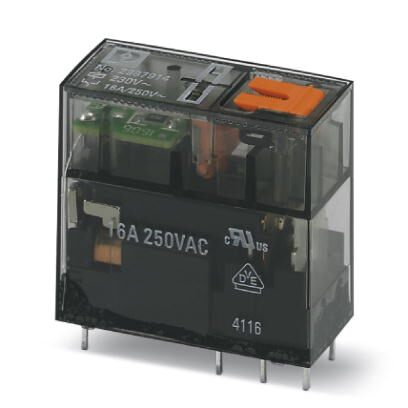

Plug-in miniature relay - with power contact
Plug-in miniature relay - with power contact - 2 PDTs - test button - mechanical switch position indicator - status LED - input voltage 24 V AC
Plug-in miniature relay - with power contact
Plug-in miniature relay - with power contact - 1 PDT - test button - mechanical switch position indicator - status LED - input voltage 230 V AC

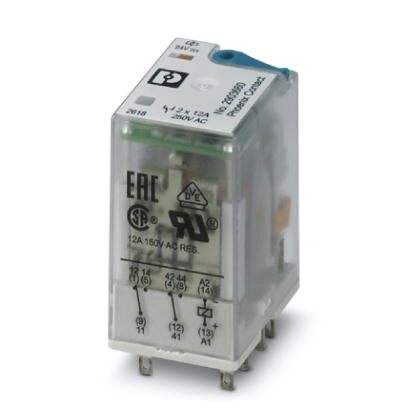

Plug-in industrial relay with power contacts
Plug-in industrial relay with power contacts - 2 PDTs - test key - status LED - freewheeling diode - mechanical switch position indicator - polarity: A1+ - A2- - input voltage: 24 V DC
Electromechanical Relay 24VDC
Electromechanical Relay 24VDC 2.67KOhm 6A SPST-NO (6.2x80x94)mm DIN Rail PLC Relay
PLC-INTERFACE, consisting of PLC-BSP.../21 basic terminal block with spring-cage connection and plug-in miniature relay
PLC-INTERFACE, consisting of PLC-BSP.../21 basic terminal block with spring-cage connection and plug-in miniature relay with multi-layer gold contact, for mounting on DIN rail NS 35/7,5, 1 PDT, input voltage 24 V DC
Preassembled relay modules with spring-cage connection
Preassembled relay modules with spring-cage connection, consisting of a relay base, industrial relay with integrated LED and engage/disengage manual actuate lever, varistor protective module, and retaining bracket. Input voltage: 230 V AC, two PDTs, 10 A

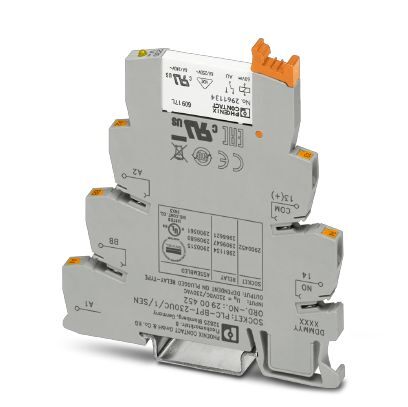

convenient push-in connection and a plug-in miniature relay
The PHOENIX CONTACT part 2900315 is a PLC-INTERFACE designed for input functions. It includes a PLC-BPT.../SEN basic terminal block with a convenient push-in connection and a plug-in miniature relay featuring multi-layer gold contacts. This component is designed for easy mounting on a DIN rail NS 35/7,5 and features 1 N/O contact. It is compatible with input voltage of 230 V AC/220 V DC, making it ideal for a variety of industrial applications.

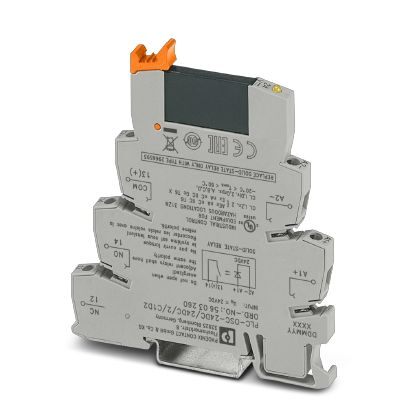

Plug-in miniature solid-state relay
The 5603260 is PLC-INTERFACE, consisting of DIN rail-mountable basic terminal block with screw connection and plug-in miniature solid-state relay, input: 24 V DC, output: 3 ... 33 V DC/3 A, UL/cUL: approved for use in Ex Zone Class I, Div. 2.

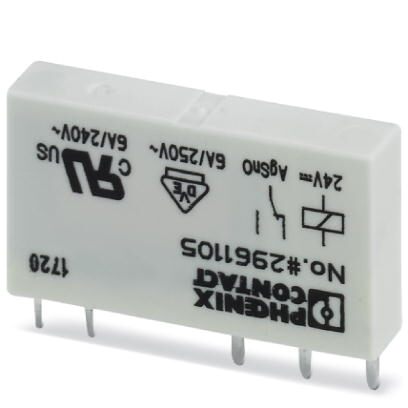

Single relay
RIFLINE Complete is Phoenix Contact's new cost effective modular ice cube relay series. The relays range from a slim 6.2 mm coupling relay to a small power contactor replacement. The most powerful relay can switch voltages up to 440 V. Mounting Type Through Hole Coil Voltage 24VDC Contact Form SPDT (1 Form C) Contact Rating (Current) 6A Switching Voltage 250VAC, 250VDC - Max Coil Type Non Latching Termination Style PC Pin Operate Time 5ms Release Time 2.5ms Operating Temperature -40°C ~ 85°C

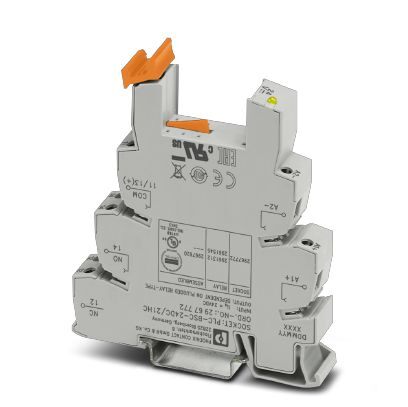

Relay base
The PHOENIX CONTACT part 2967772 is a 14 mm PLC basic terminal block designed specifically for high continuous currents. It features a screw connection for strong and secure connections. This terminal block does not include a relay or solid-state relay. It is suitable for mounting on DIN rail NS 35/7.5 and has 1 PDT (single pole, double throw) configuration. The input voltage for this terminal block is 24 V DC.
Circuit Breaker

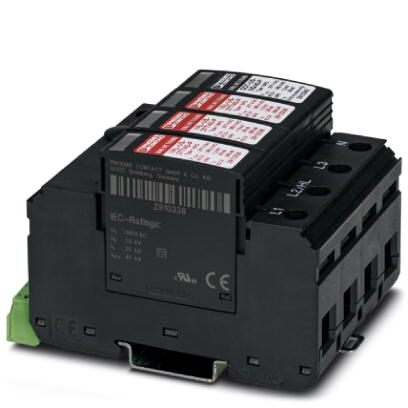

Surge protective device - four channel
The PHOENIX CONTACT VAL-US-277/40/3+1-FM is a surge protective device specifically designed to protect electrical systems operating at 277/480 V AC. This four-channel device offers reliable surge protection for both power and communication lines, ensuring the safety and preventing system failures caused by overvoltage events.Featuring a convenient remote indicator contact, this surge protective device provides users with instant feedback on its operational status. With its 4-wire plus ground configuration, the VAL-US-277/40/3+1-FM offers comprehensive protection against surges for various system components, including control panels, data communication equipment, and more.Designed by the trusted and renowned manufacturer PHOENIX CONTACT, this surge protective device guarantees exceptional quality and reliability. It is an ideal choice for applications in industrial settings, commercial buildings, and other environments where robust surge protection is essential to ensure uninterrupted operation and prevent costly equipment damage.

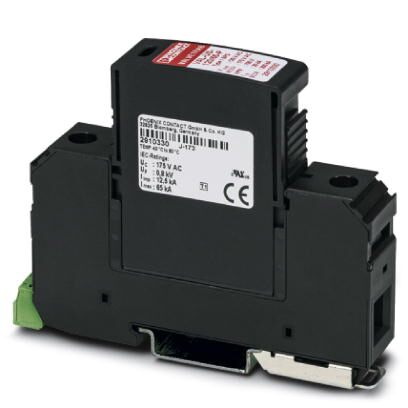

Surge protective device - single channel
The 2910356 is a Type 1/2 surge protective device for two-channel, 120V AC power systems. It operates with a maximum continuous voltage (MCOV) of 175V AC (L-N) and 264V AC (N-G). This SPD provides a UL-rated nominal discharge current (In) of 20 kA and can handle a maximum surge current of 65 kA per phase. Key features include a high short-circuit current rating (SCCR) of 200 kA, a pluggable two-section design for 35 mm DIN rail mounting, and both optical and remote contact signaling for fault indication. Its robust design and high ratings make it suitable for protecting sensitive equipment in TN-S and TT power distribution systems.
HMI

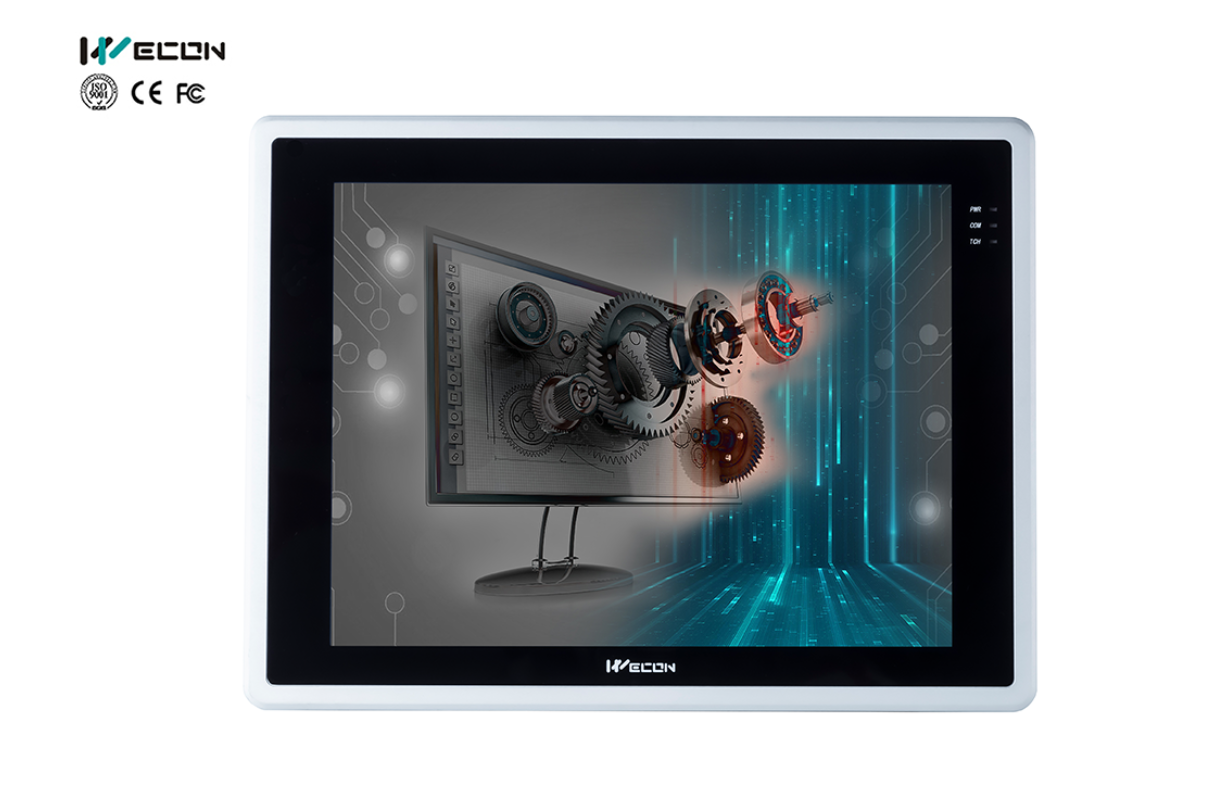

WECON PI8121ig(N) 12" High-Performance HMI
The WECON PI8121ig(N) is a high-performance 12-inch Human Machine Interface designed for advanced industrial visualization and complex automation control. Powered by a Quad-core high-performance CPU with 512MB RAM and 4GB Flash memory, it provides the processing power required for data-heavy applications. It features a high-resolution 1024 X 768 display and versatile connectivity options, including dual Ethernet ports and multiple serial interfaces, ensuring seamless integration into modern IIoT environments. Key Features: Display: 12-inch screen with a crisp 1024 X 768 resolution. CPU & Memory: Quad-core high-performance CPU with 4GB Flash and 512MB RAM. Connectivity: Equipped with dual Ethernet ports for flexible networking. Serial Interfaces: COM1 supports RS232 and RS422/RS485; additional dedicated RS485 port. Flexible Deployment: Supports project downloads via USB cable, USB flash drive, LAN, and remote download. Reliability: Industrial-grade hardware designed for stability in demanding environments.
WECON PI8101ig(N) 10.1" High-Performance HMI
The WECON PI8101ig(N) is a high-end 10.1-inch Human Machine Interface powered by a Quad-core high-performance CPU. Designed for advanced industrial networking, it features dual Ethernet ports and supports sophisticated project management through multiple download methods including LAN and remote access. With a crisp 1024 X 600 resolution and substantial 4GB Flash memory, it provides a powerful platform for data-intensive automation and visualization. Key Features: CPU & Memory: Quad-core high-performance processor with 4GB Flash and 512MB RAM memory. Display: 10.1" widescreen display with 1024 X 600 resolution. Networking: Dual Ethernet ports for flexible network architecture. Interfaces: COM1 supports RS232 and RS422/RS485; additional dedicated RS485 port available. Project Deployment: Supports USB cable, USB flash drive, LAN, and remote download methods. Industrial Grade: CE and FCC certified with a rugged enclosure design.

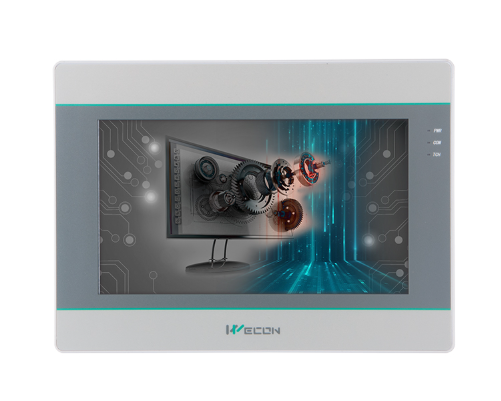

WECON PI8070ig(N) 7" High-Performance HMI
The WECON PI8070ig(N) is an advanced 7-inch Human Machine Interface powered by a Quad-core high-performance CPU. Designed for seamless industrial connectivity, it features dual Ethernet ports and supports IP camera integration. This HMI offers versatile project management with multiple download methods, including USB, LAN, and remote options, backed by 4GB of Flash and 512MB of RAM for complex industrial applications. Key Features: CPU & Memory: Quad-core high-performance processor with 4GB Flash and 512MB RAM. Display: 7" screen with 800 X 480 resolution. Connectivity: Equipped with 2 Ethernet ports and support for IP Cameras. Serial Interfaces: COM1 supporting RS232, RS422/RS485, and a dedicated RS485 port. Flexible Programming: Supports downloading via USB cable, USB flash drive, LAN, and remote download. Industrial Design: Built for reliability in automated environments with standard certifications.

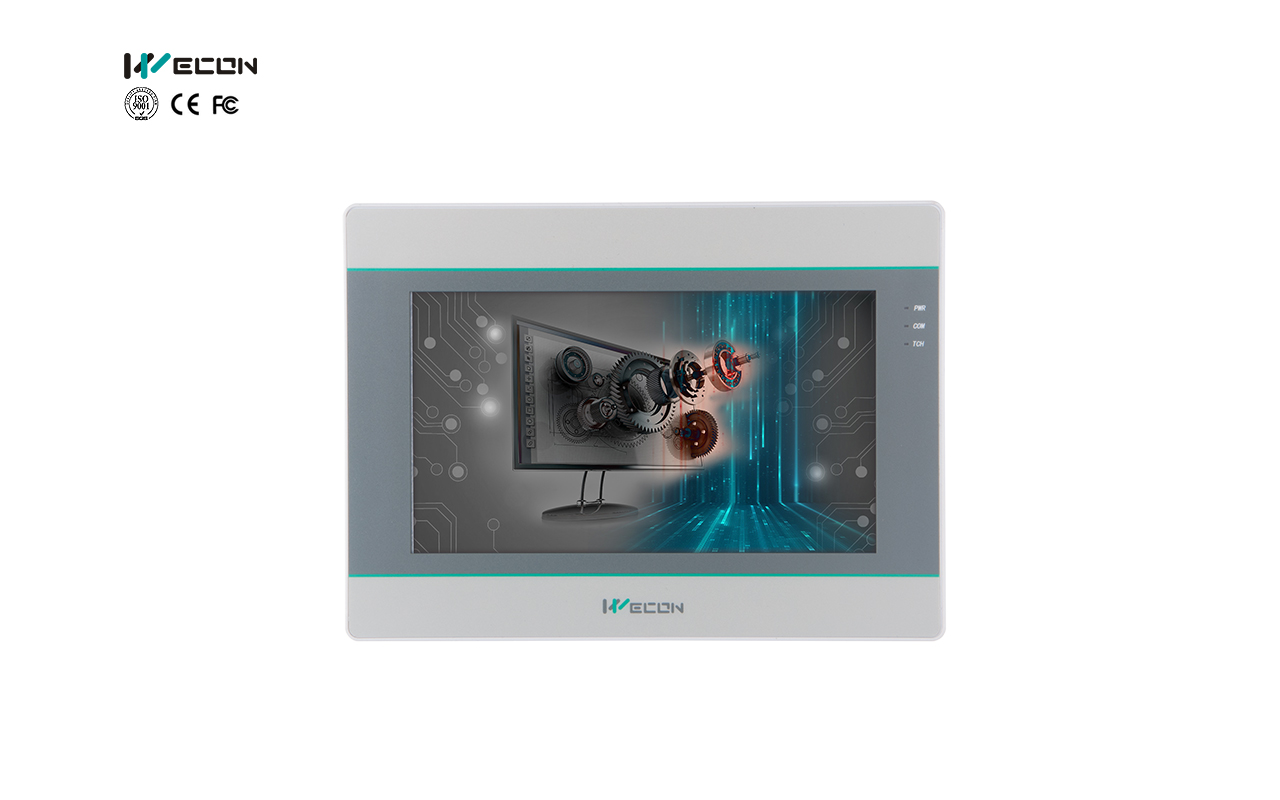

WECON PI8102ig Series 10.1" High-Performance HMI
The WECON PI8102ig is a professional 10.1-inch Human Machine Interface engineered for high-visibility industrial applications and robust IIoT connectivity. It features a large 1024 X 600 resolution TFT display with 350 cd/m2 brightness, making it ideal for detailed process monitoring. With a high-performance CPU, 4GB of flash storage, and advanced V-Net functions, it supports modern factory requirements like MQTT, Lua scripting, and secure remote access. Key Features: Display: 10.1" TFT screen with 1024 X 600 resolution and 350 cd/m2 brightness. Touch Panel: High-precision four-wire resistive touch. Memory: 512 MB RAM and 4 GB Flash storage with SD card slot support. Connectivity: Integrated Ethernet (x1), USB 2.0 Host + Client (non-simultaneous use), and versatile serial ports (RS232/RS422/RS485). IIoT Integration: Supports Cloud SCADA, MQTT, Lua Scripting, and WVPN for secure remote control. Networking Options: Available in standard Ethernet, 4G (G model), or WIFI (W model) configurations. Durability: IP65- rated front panel with a working temperature range of 10°C to 55°C Power Supply: 24V DC (Input range 12 - 28V) with low power consumption under 10W.
WECON PI8070ig Series 7" High-Performance HMI
The WECON PI8070ig is a high-performance 7-inch Human Machine Interface designed for versatile industrial automation and IIoT connectivity. Featuring a bright TFT display and a high-performance CPU, it supports advanced V-Net functions such as MQTT, Lua scripting, and remote monitoring via Cloud or mobile APP. Its robust design includes an IP65-rated front panel and multiple communication ports, making it an ideal central hub for machine control and data management. Display: 7" TFT screen with 800 X 480 resolution and 250 cd/m2 brightness Touch Panel: High-precision four-wire resistive touch Memory: 512MB RAM and 4GB Flash storage with SD card slot support Communication: Integrated Ethernet, USB 2.0 Host/Client, and multiple serial ports (RS232/RS422/RS485) IIoT Functions: Supports MQTT, Lua script, Cloud monitoring, and Email alarms Network Options: Available in standard Ethernet, 4G, or Wi-Fi versions Durability: IP65-rated front panel with a working temperature range of 10°C to 55°C Power Supply: 24V DC (Input range 12 - 28V ) with power consumption < 10W

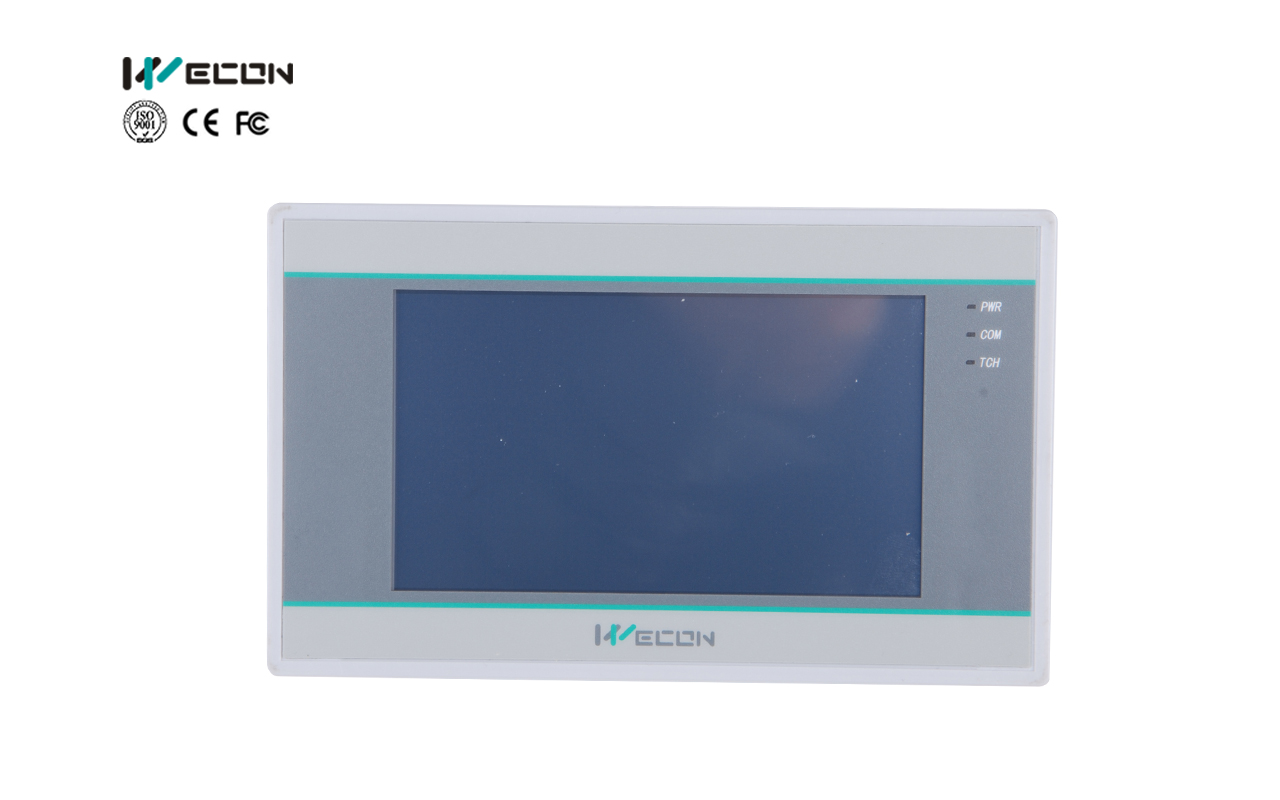

WECON PI8043ig Series 4.3" High-Performance HMI
The WECON PI8043ig is a compact and versatile 4.3-inch Human Machine Interface designed for efficient machine control and IIoT connectivity. Despite its small footprint, it features a high-performance CPU, 4GB of flash storage, and advanced V-Net functions like MQTT, Lua Scripting, and remote monitoring via Cloud or APP. It is built for industrial reliability with an IP65-rated front panel and wide operating temperature range, making it a powerful choice for modern control panels. Key Features: Display: 4.3" screen with 480 X 272 resolution and 300 cd/m2 brightness. Touch Panel: High-precision four-wire resistive touch. Memory: 512MB RAM and 4GB Flash storage. Connectivity: Integrated Ethernet port, USB 2.0 Host or USB Type-C (cannot be used simultaneously). Serial Ports: Support for RS232, RS422, and RS485. IIoT Functions: Supports MQTT, Lua Script, Remote Update, and Email Alarms. Network Options: Available in standard Ethernet, 4G, or Wi-Fi versions. Environment: Durable plastic/ABS shell with a working temperature range of - 10°C to 55°C

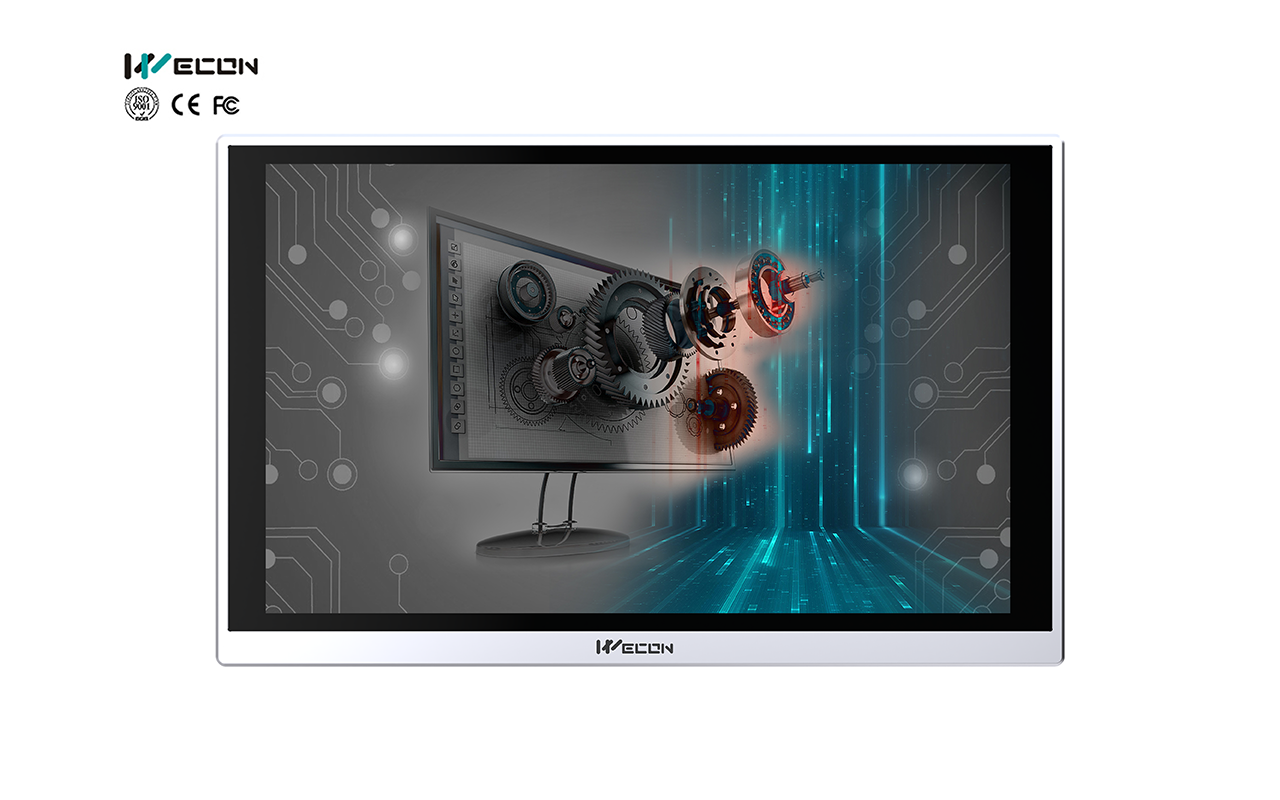

WECON PI8150ig Series 15" High-Performance HMI
The WECON PI8150ig is a premium 15-inch Human Machine Interface designed for high-end industrial visualization and IIoT connectivity. Featuring a crisp 1920 X 1080 resolution and a durable aluminum-metal shell, this HMI supports advanced V-Net functions, including remote monitoring, cloud data update, and MQTT protocol. It is equipped with a high-performance CPU and extensive communication options like Ethernet, CANopen, and optional 4G or Wi-Fi for seamless factory integration. Key Features: Display: 15" TFT Screen with 1920 X 1080 resolution and 250 cd/m2 brightness Touch Panel: High-precision four-wire resistive touch Memory: 512MB RAM and 4GB Flash storage; supports TF cards Connectivity: Built-in Ethernet, USB Host/Client, and multiple Serial ports (RS232/RS422/RS485) IIoT Ready: Supports MQTT, Lua Script, Remote Control, and Email Alarms Networking Options: Available with standard Ethernet, 4G (Global/Local), or Wi-Fi depending on model Multimedia: Supports IP Camera integration, Audio Output, and Video Player Durability: IP65 rated front panel with an aluminum + metal shell Operating Temp: 0°C to 50°C Power: 24V DC ( Input range 18 - 28V )
Connectors
PLC

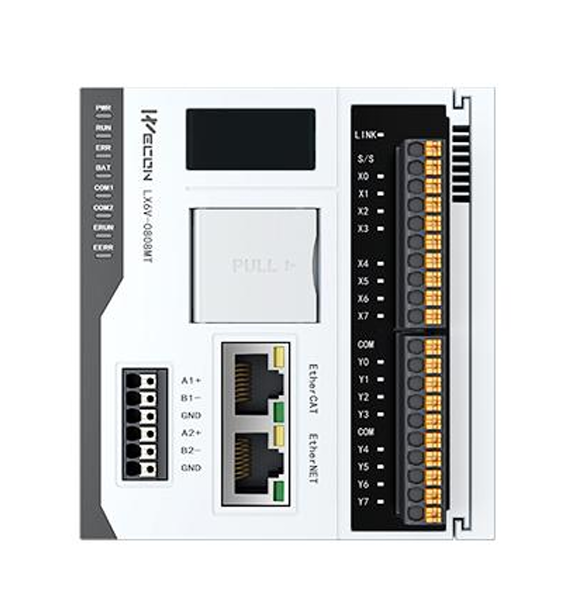

WECON LX6V-0808MT High-Performance EtherCAT PLC
The WECON LX6V-0808MT is a high-performance programmable logic controller optimized for large-scale motion control systems. Featuring a Gigabit Ethernet interface and built-in EtherCAT support, it can manage up to 128 servo axes with exceptional precision. With an ultra-fast execution time of 0.01 - 0.02 µs and a 5M program capacity, it is designed to handle the most demanding industrial automation tasks, including high-speed pulse output and complex function blocks (FB/FC). Key Features: I/O Configuration: 8 Digital Input / 8 Digital Output Output Type: Transistor Motion Control: Built-in EtherCAT supporting up to 128 servo axes Execution Speed: 0.01 - 0.02 µs for basic instructions Program Capacity: 5M Programming: Instruction Table, Ladder Diagram, FB, and FC Connectivity: Gigabit Ethernet, Dual RS485 ports, and USB Type-C for programming/monitoring High-Speed I/O: 4-channel pulse output (200kHz) and 8-channel high-speed single input (150kHz) Advanced Interrupts: 100 channels for timer 0.1ms and high-speed counter interrupts Storage: Integrated TF Card support Environmental: Operating temperature 0°C to 55°C industrial-grade immunity (IEC61000-4-4)

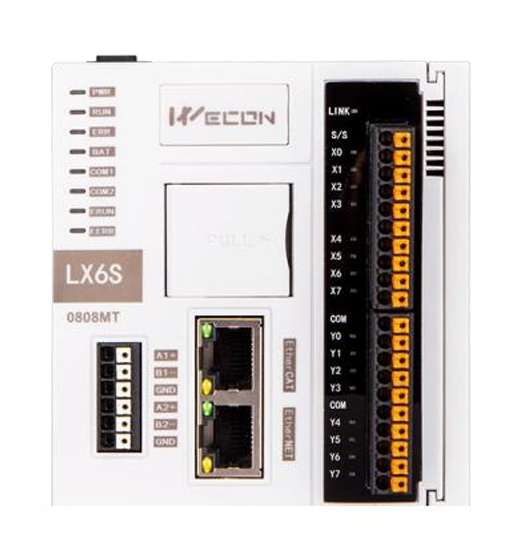

WECON LX6S-0808MT High-Performance EtherCAT PLC
The WECON LX6S-0808MT is a next-generation high-performance controller designed for sophisticated motion control applications. It features built-in EtherCAT support for controlling up to 16 servo axes and offers ultra-fast execution speeds down to 0.01 µs .With a massive 5M program capacity and support for multiple programming languages including ST and SFC, it provides the flexibility needed for modern, complex industrial systems. Key Features: I/O Configuration: 8 Digital Input / 8 Digital Output Output Type: Transistor Motion Control: Built-in EtherCAT supporting 8 or 16 servo axes Programming: LD (Ladder), ST (Structured Text), and SFC (Sequential Function Chart) Execution Speed: 0.01 to 0.02 µs for basic instructions Program Capacity: 5M High-Speed Pulse Output: 4 channels / 200kHz Communication: 100M Ethernet, Dual RS485 (COM1/COM2), and USB Type-C for programming/monitoring Storage: TF Card support for data logging and expanded storage Operating Temperature: 0°C to 55°C Power Supply: DC

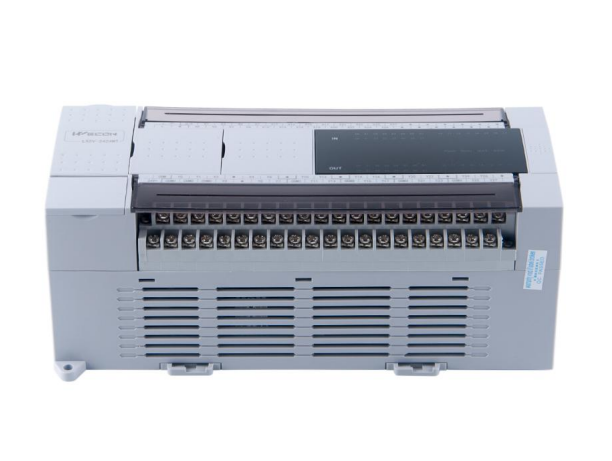

WECON LX5V-2424MT / LX5V-3624MT Programmable Logic Controller (PLC)
The WECON LX5V-2424MT/3624MT is a high-density, high-performance PLC designed for large-scale industrial automation. Part of the advanced LX5V series, it offers ultra-fast processing speeds and high I/O counts, combined with sophisticated motion control capabilities like E-CAM and 8-channel high-speed pulse output. Key Features: I/O Configuration: 24 Input / 24 Output or 36 Input / 24 Output Output Type: Transistor (NPN) Execution Speed: 0.01–0.03 µs for basic instructions Memory/Storage: 512KB System Storage Programming: Instruction List and Ladder Diagram Pulse Output: 8 channels at 200kHz (ideal for 8-axis control) High-Speed Input: 8 channels at 150kHz (Single) or 100kHz (AB Phase) Communication: 2x RS485 and 1x RS422 ports; Micro USB for monitoring Expansion: Supports BD boards (up to 2) and expansion modules Operating Temp: 0°C to 55°C Power Supply: AC 85–265V or DC 24V ±10%

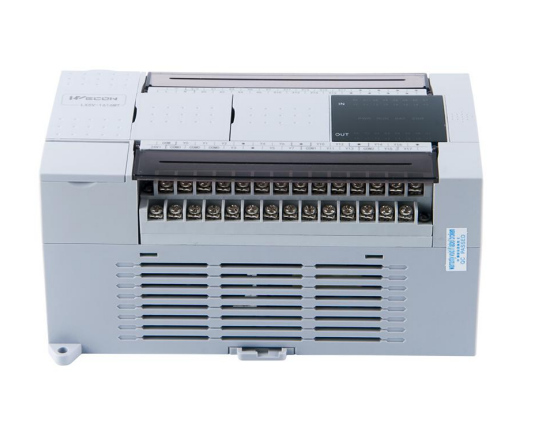

WECON LX5V-1616MT / LX5V-2416MT Programmable Logic Controller (PLC)
The WECON LX5V-1616MT/2416MT is an advanced, high-speed PLC designed for high-precision motion control and complex industrial automation. It features enhanced I/O density and supports E-CAM with 8 channels of high-speed pulse output, making it ideal for multi-axis machinery. Key Features: I/O Configuration: 16 Input / 16 Output or 24 Input / 16 Output Programming: Instruction List & Ladder Diagram Execution Speed: 0.01–0.03 µs for basic instructions System Storage: 512KB Pulse Output: 8 channels at 200kHz High-speed Input: 8 channels at 150kHz (Single) or 100kHz (AB Phase) Communication: RS422/RS485 and dedicated RS485 ports Special Functions: Supports E-CAM and up to 2 BD Boards Operating Temperature: 0°C to 55°C Power Supply Options: AC (85–265V) or DC (24V ±10%)

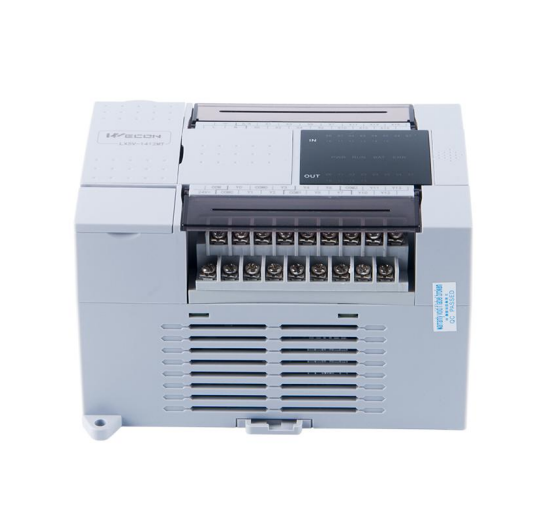

WECON LX5V-1412MT Programmable Logic Controller (PLC)
The WECON LX5V-1412MT is a high-performance programmable logic controller featuring a significant boost in processing speed and memory over standard models. It is designed for precision industrial automation, supporting advanced motion control features like E-CAM and high-speed pulse outputs. Key Features: I/O Configuration: 14 Input / 12 Output (Total 26 points) Output Type: Transistor (NPN) Execution Speed: 0.01-0.03 µs for basic instructions. System Storage: 512KB Programming: Ladder Diagram & Instruction List Pulse Output: 4 channels at 200KHz High-speed Counter: 4 channels at 150KHz (single phase) or 100KHz (AB phase) Memory & Storage: 16K steps system storage with FLASH memory. Communication: 2x RS485 ports and 1x RS422 port External Interrupts: Support for X0-X7 (rising and falling edges) Timer Interrupts: 100 Channels with a minimum interruption time of 0.1ms. Operating Temperature: 0°C to 55°C Power Supply: AC (85–265V) or DC (24V ±10%) options.

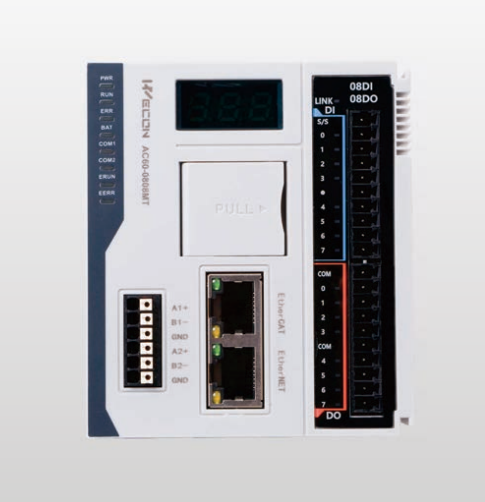

WECON AC60 Series High-performance Medium-size Controller (PLC)
The WECON AC60 is a high-performance, medium-size Programmable Logic Controller based on the CODESYS platform. Engineered for advanced industrial automation and sophisticated motion control, it features a powerful 4-core 1.8GHz CPU for superior program execution speeds. The blade-structure design allows for flexible expansion while saving space. The AC60 series offers standard Ethernet connectivity and supports multi-protocol communication, seamless project development following PLCopen2.0 standards, and effortless operation & maintenance via remote debugging in the V-NET System. Key Features: Platform: Based on the CODESYS platform. CPU: 4-core 1.8GHz CPU (on supported models -DB, -DC, -DD). I/O Configuration (Local): 8 Digital Inputs (PNP/NPN) / 8 Digital Outputs (NPN). Program Space: Program Capacity: 50MB; Variable Capacity: 10MB; Power-down Latch: 1MB. Programming Languages: LD, IL, FBD, CFC, SFC, ST. Ethernet Communication: Gigabit-capable (1000Mbps/100Mbps/10Mbps), max 128 connections/sockets/clients/servers. EtherNet/IP: Max connections 128. EtherCAT (Motion): Supports up to 256 slaves. Synchronisation cycle: 1ms for 16 axis (up to 64 axes total). USB: 1 channel TYPE-C (USB 2.0) for calibration, IP setting, etc. Serial: 2 channels RS485 (Half duplex), max baud rate 115200 bps, max 31 slaves. Supports Modbus RTU/ASCII. High Speed Input: 4 Channels, max 200KHz. High Speed Output: 4 Channels, max 200KHz. Expansion: Compatible with LX6V series expansion modules (up to 32 modules). Other Features: Optional TF card, Motion Control, OPC UA Server (supported models), WebVisu (supported models), Robotic control (supported models). Power Supply: DC 24V±10%, 1A (with short circuit/reverse protection). Software: WECSVS (Standard IEC 61131-3).

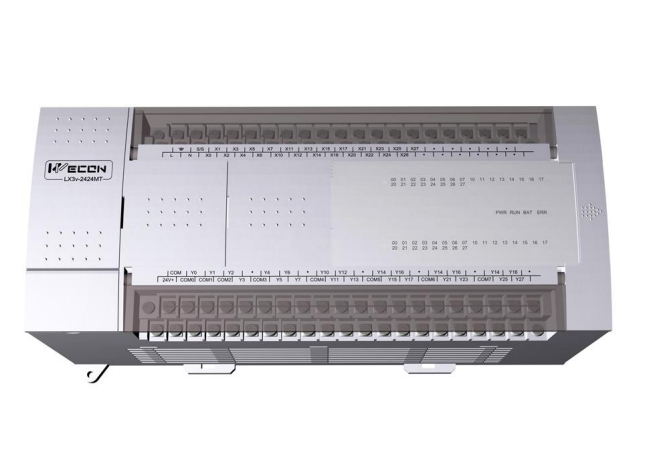

WECON LX3V-2424M / LX3V-3624M Programmable Logic Controller (PLC)
The WECON LX3V-2424M / 3624M PLC is a high-capacity, expandable programmable logic controller designed for advanced industrial automation and extensive machine control applications. It supports ladder programming and instruction list programming with an ultra-fast execution speed of 0.06 µs, ensuring efficient and stable operation. This series offers a high density of built-in I/O (up to 60 points) and supports further expansion via modules and BD boards. It includes dual communication ports (RS422/RS485), multi-channel high-speed pulse output (transistor models), and comprehensive interrupt capabilities, making it ideal for complex production lines, automation systems, and larger control panels. Key Features: I/O Configuration: 24 Input / 24 Output (LX3V-2424M series) or 36 Input / 24 Output (LX3V-3624M series). Programming: Supports Instruction List (IL) and Ladder Diagram (LD). Execution Speed: Basic Instructions: 0.06 µs; Applied Instructions: 1–10 µs. Memory: 16K System Storage with FLASH memory. Expansion: Supports Module and BD Board expansion (2 slots). Communication Ports: COM1: RS422 or RS485; COM2: RS485. High-Speed Pulse Output (Transistor): Up to 4 channels (model dependent). Interrupts: 6 External Interrupt channels; 3 Timer Interrupt channels. Environmental Ratings: Operating Temp: 0°C to 55°C; Storage Temp: -20°C to 70°C; Humidity: 5%–85% RH (non-condensing). Durability: JIS C 0040 Standard shock resistance; IEC61000-4-4 noise immunity. Power Supply Options: AC: 85–265V or DC: 24V ±10%. Outputs: Relay (2A resistive load) or Transistor (0.5A resistive load per point).

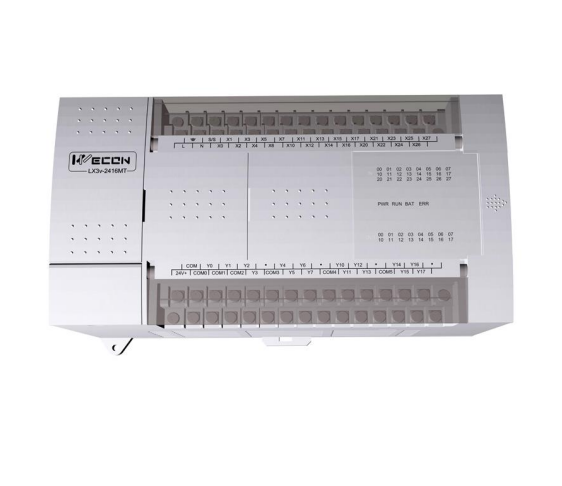

WECON LX3V-1616M / LX3V-2416M Programmable Logic Controller (PLC)
The WECON LX3V-1616M / 2416M PLC is a high-performance, compact controller designed for complex industrial automation and high-speed machine control. It features an upgraded I/O density compared to smaller models, supporting 32 to 40 total I/O points to handle more demanding production line environments. Key Features: I/O Configuration: 16 Input / 16 Output (1616M) or 24 Input / 16 Output (2416M). Programming: Supports Ladder Diagram (LD) and Instruction List (IL). Execution Speed: Ultra-fast 0.06 µs for basic instructions; 1–10 µs for applied instructions. Memory & Storage: 16K steps system storage with FLASH memory. Communication: Dual Serial Ports (COM1: RS422 or RS485; COM2: RS485) and Mini USB/Serial programming support. Expansion: Supports BD Board and Module expansion. Pulse Output: Up to 4 channels of high-speed pulse output (model dependent). Interrupts: 6 External Interrupt channels and 3 Timer Interrupt channels. Durability: JIS C 0040 Standard shock resistance and IEC61000-4-4 noise immunity. Power Supply: AC (85–265V) or DC (24V ±10%) options.

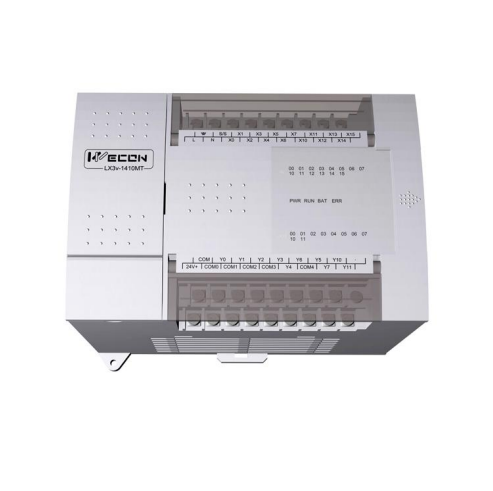

WECON LX3V-1212M / LX3V-1412M Programmable Logic Controller (PLC)
The WECON LX3V-1212M / 1412M PLC is a high-performance programmable logic controller designed for industrial automation and machine control applications. It provides reliable operation with fast processing speed and flexible I/O configurations. This PLC supports both ladder diagram and instruction list programming, and includes built-in RS422/RS485 communication interfaces. Transistor models support high-speed pulse output, making it suitable for motion control and high-speed automation tasks. Key Features: I/O Configuration: LX3V-1212M: 12 Input / 12 Output LX3V-1412M: 14 Input / 12 Output Programming: Ladder Diagram & Instruction List Execution Speed: 0.06 µs (basic instructions) Memory Capacity: 16K steps Communication Ports: RS422 / RS485 High-speed pulse output (transistor models) External Interrupt: 6 channels Timer Interrupt: 3 channels Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 70°C Humidity: 5% – 85% RH (non-condensing) Power Supply Options: AC: 85–265V DC: 24V ±10% Durable industrial design with high noise immunity

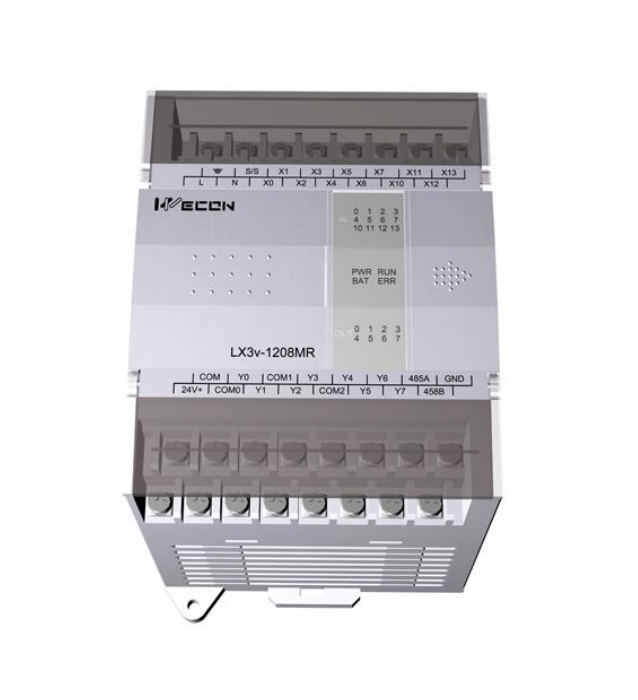

WECON LX3V-0806M / LX3V-1208M Programmable Logic Controller (PLC)
The WECON LX3V-0806M / 1208M PLC is a compact and reliable programmable logic controller designed for industrial automation and machine control applications. It supports ladder programming and instruction list programming with ultra-fast execution speed, ensuring efficient and stable operation. This model includes flexible I/O configurations, built-in communication ports (RS422/RS485), and high-speed pulse output support (transistor models), making it ideal for automation systems, production lines, and control panels. Key Features: I/O Configuration: 8 Input / 6 Output or 12 Input / 8 Output Programming: Ladder Diagram & Instruction List Execution Speed: 0.06 µs (basic instructions) Memory Capacity: 16K steps Communication Ports: RS422 / RS485 High-speed pulse output (transistor models) External Interrupt: 6 channels Timer Interrupt: 3 channels Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 70°C Humidity: 5% – 85% RH (non-condensing) Power Supply Options: AC: 85–265V DC: 24V ±10% Compact design with industrial-grade durability
